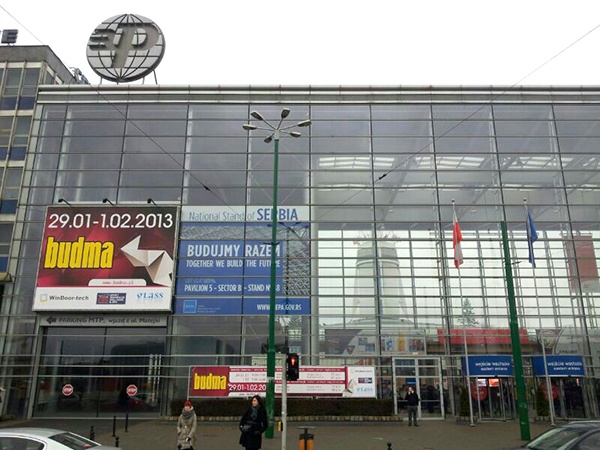

Our company TECNOPOL SYSTEMS Manufacturer and formulator of waterproofing systems, insulation and industrial coating has participated for second consecutive year in the BUDMA Construction fair of the days held January 29 to February 1 in the Polish city of Poznan. On this occasion, and with our partner in the country of celebration, we have enlarged and consolidated the commercial relationship generated fro our presence in the area. Reality and area needs makes that our systems and products have a good aceptation , therefore the decision of implantation was correct.
The presence of products and systems in the area of is very large and covers poland , also the neighboring country of great potentiality in the use of these systems.
He has seen the good podido ACCEPTANCE OF basados our systems of waterproofing liquid membrane in 100% pure Polyurea TECNOCOAT P-2049, DESMOPOL polyurethane liquid membrane, as well as different systems of them basados Thermal insulation of the Projection of foam and INYECCION Polyurethane TECNOFOAM of distinct characteristics and densidades.
The new product presented by Tecnopol in this construction meeting has been the presentation of the range of epoxy for flooring coating 100% solids, TECNOFLOOR. is created to cover industrial application of continuos ,self-leveling paviments, or multilayers, with an easy cleaning and maintenance.
.jpg "Espuma de poliuretano Tecnofoam")
From our range of polyurethane foam TECNOFOAM, we may say that the acceptance has been very favorable of both systems as of injection ,or projection:
Projection SYSTEMS
More than 15 years we are as specialists in the creation of all kinds of insulation systems based in polyurethane foam. The high capacity of polyurethane foam of insulation is not obtained with another insulating material commonly used.
In our range of products for the insulation, there are polyurethane foam systems of diverse density and properties ,thus we offer specific products for all needs.
These systems of polyurethane foam has been specially formulated to offer, in addition to an excellent Thermal insulation, a good mechanical properties for each application.
TECNOFOAM G-2048
polyurethane foam of 30 kg/m3
It is specifically designed for thermal insulation in Construction industry; applications such as cameras interior and exterior walls insulation ,under roof insulation ,where a high compression resistance is not demanded , mostly in agricultural and industrial sector , etc..
APPLIED FOAM PROPERTIES
- Densidy applied 33 ~ 38 kg/m3 (UNE EN 1602)
- Thermal conductivity 0.030 ± 0.001 W / m • K (UNE-EN 12667)
- Reactions to Fire Class E (EuroClass) (UNE-EN 3823:2002)
- Resistance to compresión kpa140-180 (UNE-EN 826)
- Does not contain HFCs, HCFCs, VOCs, et.
TECNOFOAM G-2049
polyurethane foam of 35 kg/m3
because of its meduim density ,this polyurethane foam system has been specially formulated for the spraying as for floor application insulation,inclined roofs , etc. ..
APPLIED FOAM PROPERTIES
- Applied Density of 35 ~ 40 kg/m3 (UNE 92120-1)
- Thermal conductivity (10 ° C) 0020 W / m • K (ISO 8301)
- Thermal conductivity (24 ° C) 0022 W / m • K (UNE-EN 12667-2002)
- Reactions to Fire Class E (EuroClass) (UNE-EN 13501-1)
- Compresión resistance 190 Kpa (UNE-EN 826)
Closed cells 98% (ISO 4590)
TECNOFOAM G-2040
polyurethane foam of 40 kg/m3
Eficace system of 40 kg/m3 densidy, Free of substances harmful to Ozon layer. is ideal for passable roofs insulation..
APPLIED FOAM PROPERTIES
- Density applied 40 ~ 47 kg/m3 (UNE EN 1602)
- Thermal conductivity 0.032 ± 0.001 W / m • K (UNE-EN 12667)
- Reactions to Fire Class E (EuroClass) (UNE EN 13501-1)
- Resistance compresión 213 (kPa) (UNE EN 826)
TECNOFOAM G-2050
polyurethane foam of 50 kg/m3 density
it has an optimum hermal insulation thanks to its high density. suitable for insulation of large surfaces with intense traffic, additionally to its high density, it offers a good waterproof properties .
APPLIED FOAM PROPERTIES
- Density applied 50 ~ 57 kg/m3 (UNE EN 1602)
- Thermal conductivity 0.030 ± 0.001 W / m • K (UNE-EN 12667)
- Reactions to Fire Class E (EuroClass) (UNE EN 13501-1)
- Resistance compresión 250 (kPa) (UNE EN 826)
- Does not contain HFCs, HCFCs, VOCs, et.
TECNOFOAM G-2008
Polyurethane foam of density 8 kg/m3
Rigid open cell polyurethane foam for spraying.
It has Developed for thermal insulation in air conditioning sector and the residential buildings, and is specially suitable for applications in interior walls and inpassable roofs. its expansion is high till 10 cm, excellent for coating and insulation of wooden structures and slabs.
APPLIED FOAM PROPERTIES
- SBI Made in plaster Bs1d0 prueba (Classification)
- Content De Cells open> 95% (ASTM D2856)
- Water vapor permeability to 1 "thick> 3. 0 Permission (ASTM E96)
- Thermal conductivity 0,035 W / m • K (ISO 8301)
INYECCION SYSTEMS
Bicomponente systems specially designed for the Thermal and acoustic insulation in construction industry.
In our systems, unlike foams made with gaz expansion , the coefficient of thermal Transfer remains unchanged from the isntallation moment and during product life time.
These systems do not emit the Environment substance once instaled. Not contains fibers or products bio-harmful.
TECNOFOAM I-2008
INYECCION system of density 15 ~ 20 kg/m3
suitable system for applications that requieres good acoustic insulation properties.
Reactivity
- cream time 5 + / -1 seconds (UNE 92120-1)
- rise time 12 + / -1 seconds (UNE 92120-1)
- Density from 10 to 15 kg/m3 (UNE 92120-1)
PROPERTIES APPLIED FOAM
- Density applied 15-20 (UNE EN 1602)
- Thermal conductivity 0035 + / - 2 W / m ° C (UNE-EN 12667)
- Reactions to fire Euroclass E (UNE-EN 13823:2002)
- Dimensional Estability <0.5% volume (UNE EN 1604)
- Resistance compresión N.D. (UNE-EN 826)
- Acoustic absorption (coefficient) 0.5 (UNE EN 29053:1993)
- Does not contain HFCs, HCFCs, VOCs, et.
TECNOFOAM I-2035
INYECCION system ,density 35 kg/m3
Polyurethane foam for thermal insulation of ducts, Pipelines, and refrigeration industry.
Reactivity
- Time Cream 25 + / -3 seconds (UNE 92120-1)
- rise time 90 + / -10 seconds (UNE 92120-1)
- Time for Tact 170 + / -15 seconds (UNE 92120-1)
- Density free from 38 to 42 kg/m3 (UNE 92120-1)
PROPERTIES OF APPLIED FOAM
- Density applied 38 to 42 kg/m3 (UNE EN 1602)
- Thermal conductivity 0.030 ± 0.001 W / m • K (UNE-EN 12667)
- Reactions to Fire Class E (EuroClass) (UNE EN 13501-1)
- Water absorption of <5% by volume M. INT.
- Does not contain HFCs, HCFCs, VOCs, et.
TECNOFOAM F-900
bicomponent coating membrane of applications "in situ"
Polyurethane elastomer system of two components, exempt solvents, for the productions "in situ" for coating of polyurethane foam protections against the atmospheric agentes (water, hail, etc..) And the UV radiation.
It uses the same spaying equipment of polyurethane foam.
could be colored by mineral pigments to adapt the finishing esthetic of each Project.
resin proerties
Reactivity 10 + / - 5 seconds (INT-1-2007)
Density 800 ~ 1,100 (UNE-EN ISO 1183)
TECNOFOAM system not Damage Ozon layer,it does not contain HFC GAS, VOC, HFCFC ETC .
